Product Introduction

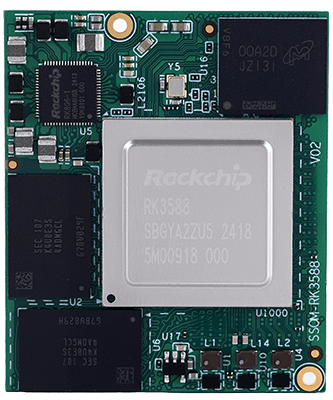

SSOM-3588-X2 is a small-sized, high-performance core module developed and designed based on the Rockchip RK3588. It integrates a quad-core Cortex-A76 and a quad-core Cortex-A55 CPU, ensuring a balance between performance and energy efficiency. The RK3588 also features a high-performance four-channel external memory interface (LPDDR4/LPDDR4X/LPDDR5), meeting the large memory bandwidth requirements for applications ranging from image post-processing to demanding computing tasks. It includes LPDDR4X, eMMC, PMIC, and four board-to-board connectors. Since most SoC signals can be transmitted through the board-to-board connectors, most of the SoC's functions can be realized.
The SSOM-3588-X2 measures only 47x39.4mm, making it compact and suitable for solution development in fields with strict size requirements, such as smart terminals, industrial control, machine vision, and edge computing.

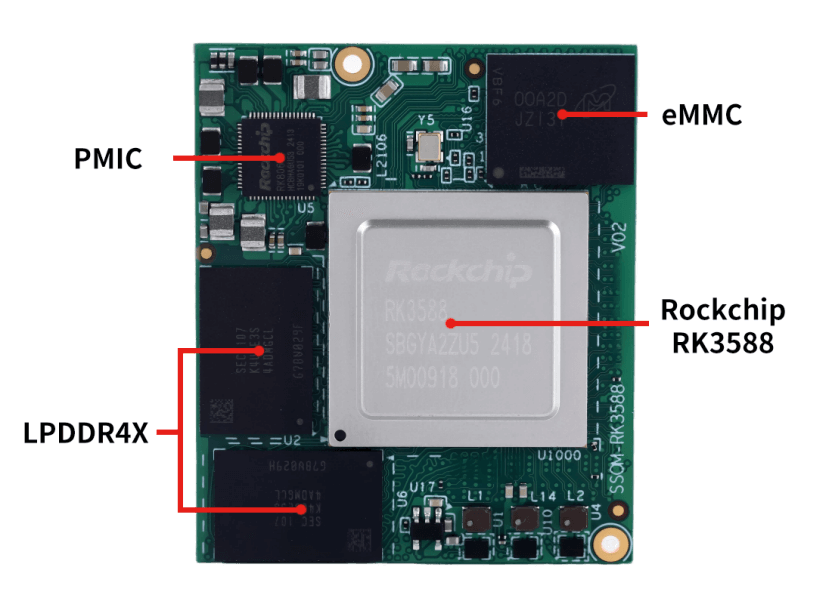

Functional Block Diagram
规格参数
1 Board
• Board dimensions: 47mm x 39.4mm x 4.7mm (dimensional tolerance ±0.10mm)
• Component mounting surface: Maximum height: 2mm (Soc part RK3588)
• Connectors surface P/N: DF40C-100DP-0.4V(51)
• Board thickness: 1.2mm
• 10 layers of immersion gold PCB.
2 Holes For Fixing The Board
• Holes size: Hole diameter: 1.6mm
• Pad outer diameter: 3.175mm
• Holes position

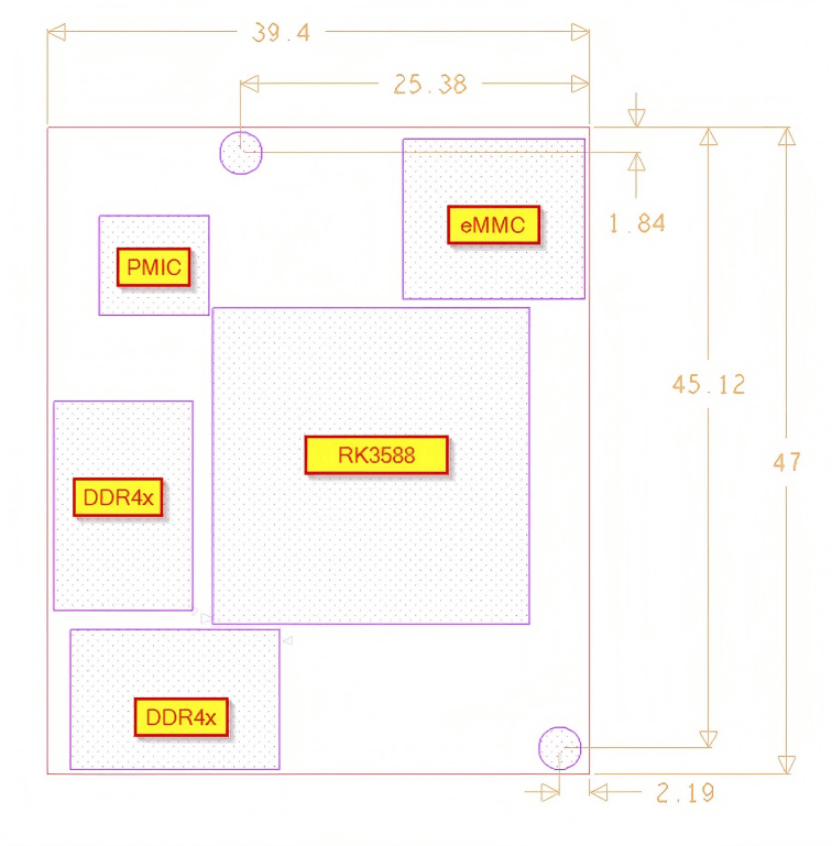

Figure 4: Holes position on top-side
All dimension is mm
3 Connectors Position

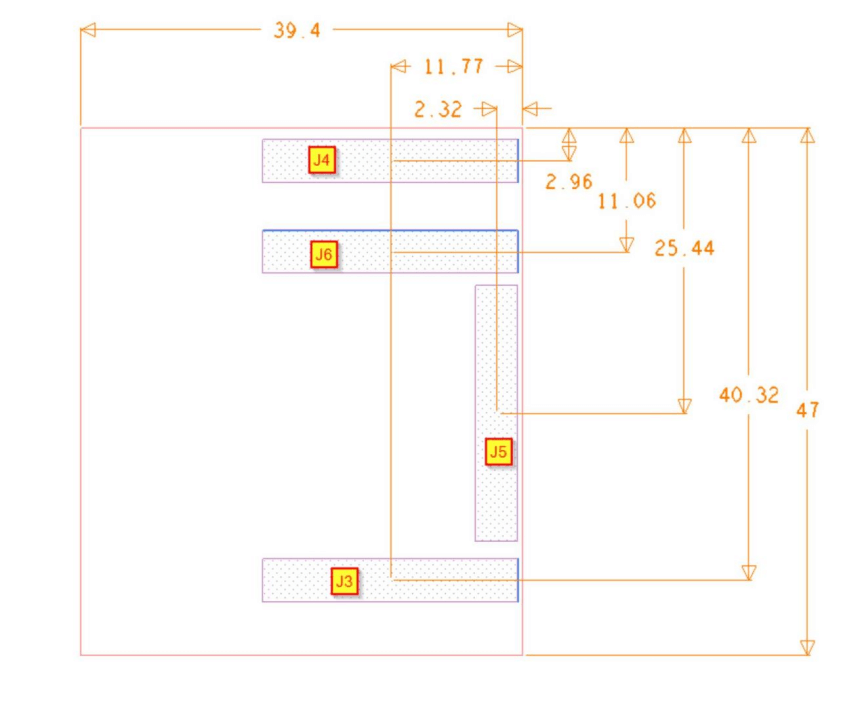

Figure 5: Connectors position on bottom-side All dimension is mm
The SoM board connectors used DF40C-100DP-0.4V(51) and the corresponding carrier board connector is DF40HC(3.0)-100DS-0.4V(58)
These model numbers suggest that these connectors are part of Hirose Electric Co's DF40 series, which are known for their compact size and high reliability in board-to-board connection.
4 Main Components
• Part location

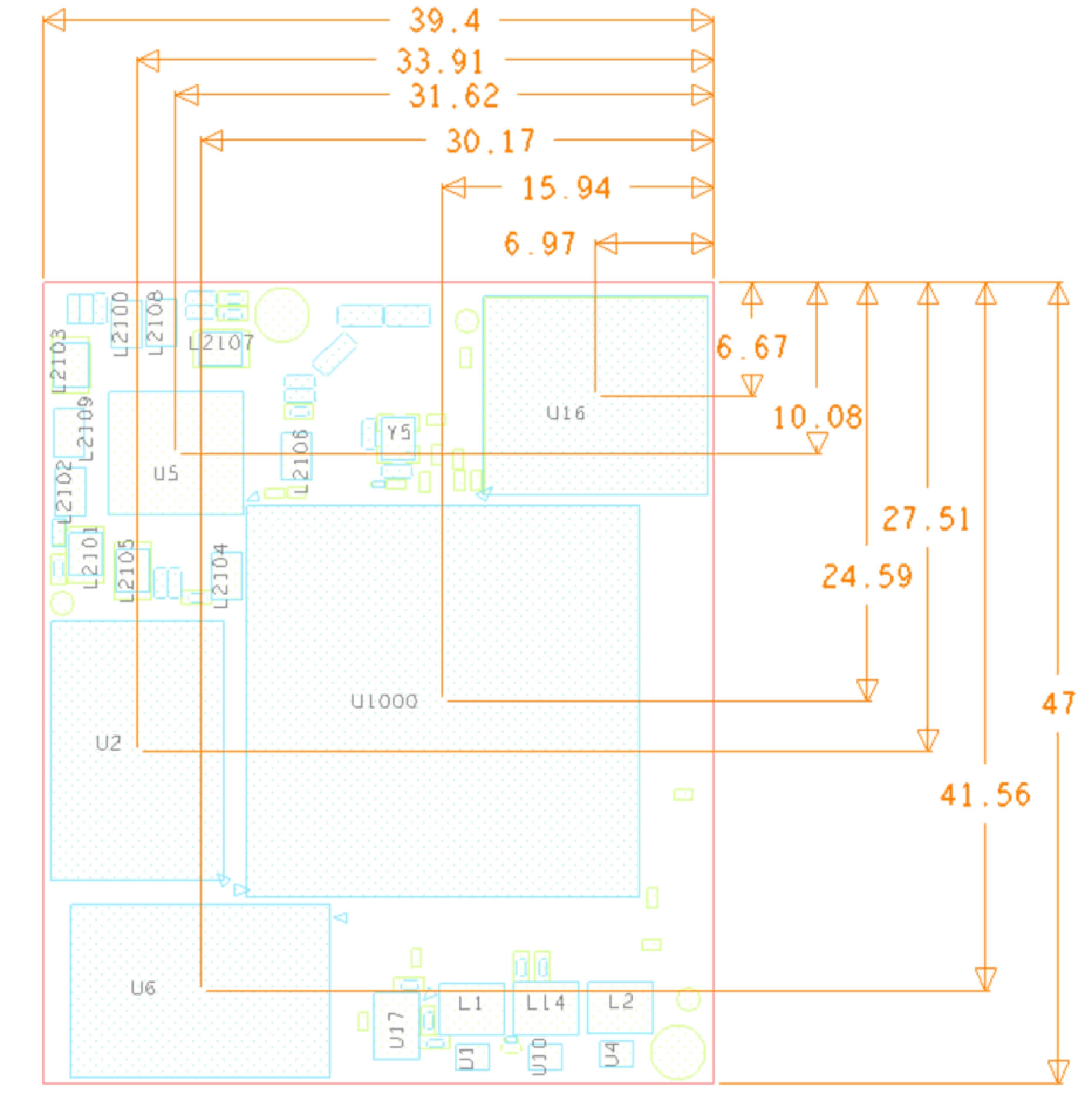

Figure 6: Parts position on top-side All dimension is mm
• Part Height
U1000: 2mm (Soc part RK3588)
U2, U6: 0.8 to 1mm (RAM LPDDR4X)
U5: 0.9mm (PMIC)
U17: 1.25mm
L1, L2, L4: 1.2mm
L2100, L2102, L2104, L2106, L2108, L2109: 1mm
L2101, L2103, L2105, L2107: 1.2mm
引脚定义
Note: Pin Type Symbol Definitions
| Symbol | Description |
|---|---|
| I | Input |
| O | Output |
| I/O | Input/Output |
| AI | Analog Input |
| AO | Analog Output |
| AI/O | Analog Input/Output |
| PI | Power Supply |
| PO | Power Output |
| SOM | System on module |
Table 1: J3 Connector Interface Pin Definition
| Pin Number | Signal Name | Signal Type | IOVoltage | Main IC | IC Pin Number | IC Pin Name |
|---|---|---|---|---|---|---|
| 1(J3) | GND | PI | 0V | |||
| 2(J3) | GPIO1_A7 | I/O | 1.8V | RK3588 | C25 | PDM1_SDI0_M1/PCIE30X1_1_PERSTN_M2/PWM3 _IR_M3/SPI2_CS0_M0/GPIO1_A7_u |
| 3(J3) | GPIO1_A6 | I/O | 1.8V | RK3588 | C24 | HDMI_TX1_HPD_M0/SPI2_CLK_M0/GPIO1_A6_d |
| 4(J3) | GPIO3_D1 | I/O | 3.3V | RK3588 | AG23 | CIF_D13/PCIE20X1_2_PERSTN_M0/HDMI_RX_CE C_M1/UART4_TX_M1/PWM9_M2/SPI0_MISO_M3/ GPIO3_D1_d |
| 5(J3) | GPIO3_D2 | I/O | 3.3V | RK3588 | AG25 | CIF_D14/PCIE30X2_CLKREQN_M2/HDMI_RX_SCL _M1/I2C7_SCL_M2/UART9_RTSN_M2/SPI0_MOSI _M3/GPIO3_D2_d |
| 6(J3) | GPIO1_D4 | I/O | 1.8V | RK3588 | D28 | I2S0_SDI0/GPIO1_D4_d |
| 7(J3) | GPIO4_B7 | I/O | 3.3V | RK3588 | AJ28 | BT1120_D13/PCIE20X1_2_CLKREQN_M1/HDMI_T X0_SCL_M0/I2C5_SDA_M1/SPI3_CLK_M1/GPIO4_ B7_u |
| 8(J3) | UART2_TX_M0_DEBUG | I/O | 1.8V | RK3588 | P29 | I2S1_MCLK_M1/JTAG_TCK_M2/I2C1_SCL_M0/UA RT2_TX_M0/PCIE30X1_1_CLKREQN_M0/GPIO0_B 5_d |
| 9(J3) | GPIO3_D3 | I/O | 3.3V | RK3588 | AG24 | CIF_D15/PCIE30X2_WAKEN_M2/HDMI_RX_SDA_ M1/I2C7_SDA_M2/UART9_CTSN_M2/PWM10_M2/ SPI0_CLK_M3/GPIO3_D3_d |
| 10(J3) | UART2_RX_M0_DEBUG | I/O | 1.8V | RK3588 | R29 | I2S1_SCLK_M1/JTAG_TMS_M2/I2C1_SDA_M0/UA RT2_RX_M0/PCIE30X1_1_WAKEN_M0/GPIO0_B6_ d |
| 11(J3) | GPIO3_C6 | I/O | 3.3V | RK3588 | AG26 | CIF_D10/PCIE30X4_PERSTN_M2/HDMI_TX1_SCL_ M1/SPI3_MISO_M3/GPIO3_C6_u |
| 12(J3) | GPIO1_A0 | I/O | 1.8V | RK3588 | A24 | PCIE30X1_1_CLKREQN_M2/DP0_HPDIN_M2/I2C2 SDA_M4/UART6_RX_M1/SPI4_MISO_M2/GPIO1 A0_d |
| 13(J3) | TYPEC1_OTG_ID | I | RK3588 | AK8 | TYPEC1_USB20_OTG_ID | |
| 14(J3) | SDMMC0_D0 | I/O | RK3588 | AD2 | SDMMC_D0/PDM1_SDI3_M0/JTAG_TCK_M1/I2C3 _SCL_M4/UART2_TX_M1/PWM8_M1/GPIO4_D0_u | |
| 15(J3) | TYPEC1_USB20_VBUSDET | I | RK3588 | AL8 | TYPEC1_USB20_VBUSDET | |
| 16(J3) | SDMMC0_D1 | I/O | RK3588 | AD1 | SDMMC_D1/PDM1_SDI2_M0/JTAG_TMS_M1/I2C 3_SDA_M4/UART2_RX_M1/PWM9_M1/GPIO4_D1 _u | |
| 17(J3) | GND | PI | 0V | |||
| 18(J3) | SDMMC0_D3 | I/O | RK3588 | AF1 | SDMMC_D3/PDM1_SDI0_M0/JTAG_TMS_M0/I2C 8_SDA_M0/UART5_RTSN_M0/PWM10_M1/GPIO4 _D3_u | |
| 19(J3) | HDMI_RX_CLKP | AI | RK3588 | AF6 | HDMI_RX_CLKP | |
| 20(J3) | SDMMC0_D2 | I/O | RK3588 | AF2 | SDMMC_D2/PDM1_SDI1_M0/JTAG_TCK_M0/I2C8 _SCL_M0/UART5_CTSN_M0/GPIO4_D2_u | |
| 21(J3) | HDMI_RX_CLKN | AI | RK3588 | AF5 | HDMI_RX_CLKN | |
| 22(J3) | SD_CLK | I/O | RK3588 | AE1 | SDMMC_CLK/PDM1_CLK0_M0/TEST_CLKOUT_M 0/MCU_JTAG_TMS_M0/CAN0_RX_M1/UART5_TX _M0/GPIO4_D5_d | |
| 23(J3) | GND | PI | 0V | |||
| 24(J3) | SDMMC0_CMD | I/O | RK3588 | AE2 | SDMMC_CMD/PDM1_CLK1_M0/MCU_JTAG_TCK_ M0/CAN0_TX_M1/UART5_RX_M0/PWM7_IR_M1/ GPIO4_D4_u | |
| 25(J3) | HDMI_RX_D0N | AI | RK3588 | AG4 | HDMI_RX_D0N | |
| 26(J3) | GND | PI | 0V | |||
| 27(J3) | HDMI_RX_D0P | AI | RK3588 | AG5 | HDMI_RX_D0P | |
| 28(J3) | GPIO1_B2 | I/O | 1.8V | RK3588 | D26 | PDM1_SDI3_M1/PCIE30X4_PERSTN_M3/UART4_ RX_M2/SPI0_MOSI_M2/GPIO1_B2_d |
| 29(J3) | GND | PI | 0V | |||
| 30(J3) | GPIO0_C6 | I/O | 1.8V | RK3588 | T29 | I2S1_SDI1_M1/NPU_AVS/UART0_RTSN/PWM5_M 1/SPI0_CLK_M0/PCIE30X4_CLKREQN_M0/SATA_ CP_POD/GPIO0_C6_u |
| 31(J3) | HDMI_RX_D1N | AI | RK3588 | AH5 | HDMI_RX_D1N | |
| 32(J3) | GPIO0_C5 | I/O | 1.8V | RK3588 | P30 | I2S1_SDI0_M1/GPU_AVS/UART0_TX_M0/I2C4_SC L_M2/DP1_HPDIN_M1/PWM4_M0/PCIE30X1_0_P ERSTN_M0/GPIO0_C5_u |
| 33(J3) | HDMI_RX_D1P | AI | RK3588 | AH6 | HDMI_RX_D1P | |
| 34(J3) | GPIO0_B7 | I/O | 1.8V | RK3588 | T28 | I2S1_LRCK_M1/PWM0_M0/I2C2_SCL_M0/CAN0_ TX_M0/SPI0_CS1_M0/PCIE30X1_1_PERSTN_M0/ GPIO0_B7_d |
| 35(J3) | GND | PI | 0V | |||
| 36(J3) | SDMMC_DET/GPIO0_A4_ U | I/O | RK3588 | P31 | SDMMC_DET/GPIO0_A4_u | |
| 37(J3) | HDMI_RX_D2N | AI | RK3588 | AJ4 | HDMI_RX_D2N | |
| 38(J3) | GPIO3_C1 | I/O | 3.3V | RK3588 | Y27 | GMAC1_PPSCLK/PCIE30X2_BUTTON_RSTN/UART 7_RX_M1/SPI1_CLK_M1/GPIO3_C1_d |
| 39(J3) | HDMI_RX_D2P | AI | RK3588 | AJ5 | HDMI_RX_D2P | |
| 40(J3) | GPIO0_C4 | I/O | 1.8V | RK3588 | R30 | PDM0_CLK1_M1/PWM2_M0/UART0_RX_M0/I2C4 SDA_M2/DP0_HPDIN_M1/PCIE30X1_0_WAKEN M0/GPIO0_C4_d |
| 41(J3) | GND | PI | 0V | |||
| 42(J3) | GPIO3_D4 | I/O | 3.3V | RK3588 | AA27 | HDMI_TX0_HPD_M1/PCIE30X2_PERSTN_M2/HD MI_RX_HPDOUT_M1/MCU_JTAG_TCK_M1/UART9 _RX_M2/SPI0_CS0_M3/GPIO3_D4_d |
| 43(J3) | USB20_HOST0_DP | AI/O | RK3588 | AK6 | USB20_HOST0_DP | |
| 44(J3) | GPIO3_D5 | I/O | 3.3V | RK3588 | AB28 | PCIE30X4_BUTTON_RSTN/DP1_HPDIN_M0/MCU_ JTAG_TMS_M1/UART9_TX_M2/PWM11_IR_M3/S PI0_CS1_M3/GPIO3_D5_d |
| 45(J3) | USB20_HOST0_DM | AI/O | RK3588 | AL6 | USB20_HOST0_DM | |
| 46(J3) | GPIO1_B1 | I/O | 1.8V | RK3588 | D25 | PDM1_SDI2_M1/PCIE30X4_WAKEN_M3/SPI0_MIS O_M2/GPIO1_B1_d |
| 47(J3) | GND | PI | 0V | |||
| 48(J3) | GPIO1_B4 | I/O | 1.8V | RK3588 | E24 | PDM1_CLK0_M1/PCIE30X1_0_PERSTN_M2/UART 7_RX_M2/SPI0_CS0_M2/GPIO1_B4_u |
| 49(J3) | USB20_HOST1_DP | AI/O | RK3588 | AL7 | USB20_HOST1_DP | |
| 50(J3) | GPIO1_B6 | I/O | 1.8V | RK3588 | E26 | MIPI_CAMERA1_CLK_M0/SPDIF0_TX_M0/PCIE30 X2_WAKEN_M3/HDMI_RX_HPDOUT_M2/I2C5_SC L_M3/UART1_TX_M1/GPIO1_B6_u |
| 51(J3) | USB20_HOST1_DM | AI/O | RK3588 | AM7 | USB20_HOST1_DM | |
| 52(J3) | GPIO1_D7 | I/O | 1.8V | RK3588 | F25 | MIPI_CAMERA4_CLK_M0/PCIE30X2_CLKREQN_M 3/HDMI_RX_SDA_M2/I2C8_SDA_M2/UART1_CTS N_M1/PWM15_IR_M3/GPIO1_D7_u |
| 53(J3) | GND | PI | 0V | |||
| 54(J3) | GPIO1_D6 | I/O | 1.8V | RK3588 | F24 | MIPI_CAMERA3_CLK_M0/HDMI_RX_SCL_M2/I2C 8_SCL_M2/UART1_RTSN_M1/PWM14_M2/GPIO1 _D6_u |
| 55(J3) | GPIO1_D0 | I/O | 1.8V | RK3588 | F26 | I2S0_SDO1/I2C7_SCL_M0/UART6_TX_M2/SPI1_M ISO_M2/GPIO1_D0_d |
| 56(J3) | GPIO1_D2 | I/O | 1.8V | RK3588 | F28 | I2S0_SDO3/I2S0_SDI2/PDM0_SDI2_M0/I2C1_SCL _M4/UART4_TX_M0/PWM0_M1/SPI1_CLK_M2/GP IO1_D2_d |
| 57(J3) | GPIO1_D1 | I/O | 1.8V | RK3588 | F27 | I2S0_SDO2/I2S0_SDI3/PDM0_SDI1_M0/I2C7_SDA _M0/UART6_RX_M2/SPI1_MOSI_M2/GPIO1_D1_d |
| 58(J3) | GPIO1_B5 | I/O | 1.8V | RK3588 | E25 | PCIE30X1_0_CLKREQN_M2/UART7_TX_M2/SPI0_ CS1_M2/GPIO1_B5_u |
| 59(J3) | GPIO1_D5 | I/O | 1.8V | RK3588 | G26 | PDM0_SDI0_M0/SPI1_CS1_M2/GPIO1_D5_d |
| 60(J3) | GPIO1_D3 | I/O | 1.8V | RK3588 | E28 | I2S0_SDI1/PDM0_SDI3_M0/I2C1_SDA_M4/UART4 _RX_M0/PWM1_M1/SPI1_CS0_M2/GPIO1_D3_d |
| 61(J3) | GPIO1_C1 | I/O | 1.8V | RK3588 | G27 | I2C3_SCL_M0/UART3_TX_M0/SPI4_MOSI_M0/GPI O1_C1_z |
| 62(J3) | GPIO1_C0 | I/O | 1.8V | RK3588 | G29 | I2C3_SDA_M0/UART3_RX_M0/SPI4_MISO_M0/GP IO1_C0_z |
| 63(J3) | GPIO1_B3 | I/O | 1.8V | RK3588 | D27 | PDM1_CLK1_M1/PCIE30X1_0_WAKEN_M2/SATA0 _ACT_LED_M1/UART4_TX_M2/SPI0_CLK_M2/GPI O1_B3_d |
| 64(J3) | GND | PI | 0V | |||
| 65(J3) | GPIO1_C2 | I/O | 1.8V | RK3588 | F30 | I2S0_MCLK/I2C6_SDA_M1/UART3_RTSN/PWM3_I R_M2/SPI4_CLK_M0/GPIO1_C2_d |
| 66(J3) | HDMI0_TX_SBDP/EDP0_T X_AUXP | AI/O | RK3588 | AG2 | HDMI_TX0_SBDP/EDP_TX0_AUXP | |
| 67(J3) | GPIO3_C4 | I/O | 3.3V | RK3588 | AH26 | CIF_D8/FSPI_CS0N_M2/PCIE30X4_CLKREQN_M2/ HDMI_TX1_CEC_M2/CAN2_RX_M0/UART5_TX_M 1/SPI3_CS0_M3/GPIO3_C4_u |
| 68(J3) | HDMI0_TX_SBDN/EDP0_T X_AUXN | AI/O | RK3588 | AG1 | HDMI_TX0_SBDN/EDP_TX0_AUXN | |
| 69(J3) | GPIO3_D0 | I/O | 3.3V | RK3588 | AH24 | CIF_D12/PCIE20X1_2_WAKEN_M0/HDMI_TX0_SD A_M2/I2C5_SDA_M0/UART4_RX_M1/PWM8_M2/S PI3_CLK_M3/GPIO3_D0_u |
| 70(J3) | GND | PI | 0V | |||
| 71(J3) | GPIO3_C5 | I/O | 3.3V | RK3588 | AH25 | CIF_D9/FSPI_CS1N_M2/PCIE30X4_WAKEN_M2/H DMI_TX1_SDA_M1/CAN2_TX_M0/UART5_RX_M1/ SPI3_CS1_M3/GPIO3_C5_u |
| 72(J3) | HDMI0_TX3P_PORT/EDP0 _TX_D3P | AO | RK3588 | AH3 | HDMI_TX0_D3P/EDP_TX0_D3P | |
| 73(J3) | SARADC_VIN5_HW_ID | AI | 1.8V | RK3588 | AK15 | SARADC_IN5 |
| 74(J3) | HDMI0_TX3N_PORT/EDP0 _TX_D3N | AO | RK3588 | AH2 | HDMI_TX0_D3N/EDP_TX0_D3N | |
| 75(J3) | GPIO4_B6 | I/O | 3.3V | RK3588 | AJ27 | BT1120_D12/PCIE30X4_PERSTN_M1/HDMI_RX_H PDOUT_M0/SATA0_ACT_LED_M0/I2C5_SCL_M1/ PWM13_M1/SPI3_MOSI_M1/GPIO4_B6_d |
| 76(J3) | GND | PI | 0V | |||
| 77(J3) | TYPEC0_OTG_ID | I | RK3588 | AL14 | TYPEC0_USB20_OTG_ID | |
| 78(J3) | HDMI0_TX0P_PORT/EDP0 _TX_D0P | AO | RK3588 | AJ2 | HDMI_TX0_D0P/EDP_TX0_D0P | |
| 79(J3) | TYPEC0_USB20_VBUSDET | I | RK3588 | AM14 | TYPEC0_USB20_VBUSDET | |
| 80(J3) | HDMI0_TX0N_PORT/EDP0 _TX_D0N | AO | RK3588 | AJ1 | HDMI_TX0_D0N/EDP_TX0_D0N | |
| 81(J3) | RTC_INT_L | I/O | 1.8V | RK3588 | L30 | SPI2_CS1_M2/I2C1_SCL_M1/UART0_RX_M1/GPI O0_B0_z |
| 82(J3) | GND | PI | 0V | |||
| 83(J3) | GPIO3_C7 | I/O | 3.3V | RK3588 | AJ24 | CIF_D11/PCIE20X1_2_CLKREQN_M0/HDMI_TX0_ SCL_M2/I2C5_SCL_M0/SPI3_MOSI_M3/GPIO3_C7 _u |
| 84(J3) | HDMI0_TX1P_PORT/EDP0 _TX_D1P | AO | RK3588 | AK3 | HDMI_TX0_D1P/EDP_TX0_D1P | |
| 85(J3) | GPIO3_C0 | I/O | 3.3V | RK3588 | Y29 | GMAC1_PPSTRIG/I2C3_SDA_M1/UART7_TX_M1/S PI1_MISO_M1/GPIO3_C0_d |
| 86(J3) | HDMI0_TX1N_PORT/EDP0 _TX_D1N | AO | RK3588 | AK2 | HDMI_TX0_D1N/EDP_TX0_D1N | |
| 87(J3) | BOOT_SARADC_IN0 | AI | 1.8V | RK3588 | AM16 | SARADC_IN0_BOOT |
| 88(J3) | GND | PI | 0V | |||
| 89(J3) | SARADC_VIN1_KEY/RECO VERY | AI | 1.8V | RK3588 | AL16 | SARADC_IN1 |
| 90(J3) | HDMI0_TX2P_PORT/EDP0 _TX_D2P | AO | RK3588 | AL2 | HDMI_TX0_D2P/EDP_TX0_D2P | |
| 91(J3) | SARADC_IN3 | AI | 1.8V | RK3588 | AN17 | SARADC_IN3 |
| 92(J3) | HDMI0_TX2N_PORT/EDP0 _TX_D2N | AO | RK3588 | AL1 | HDMI_TX0_D2N/EDP_TX0_D2N | |
| 93(J3) | SARADC_IN2 | AI | 1.8V | RK3588 | AK16 | SARADC_IN2 |
| 94(J3) | GND | PI | 0V | |||
| 95(J3) | SARADC_IN6 | AI | 1.8V | RK3588 | AL17 | SARADC_IN6 |
| 96(J3) | HDMI1_TX_SBDN/EDP1_T X_AUXN | AI/O | RK3588 | AP2 | HDMI_TX1_SBDN/EDP_TX1_AUXN | |
| 97(J3) | SARADC_IN7 | AI | 1.8V | RK3588 | AK17 | SARADC_IN7 |
| 98(J3) | HDMI1_TX_SBDP/EDP1_T X_AUXP | AI/O | RK3588 | AN2 | HDMI_TX1_SBDP/EDP_TX1_AUXP | |
| 99(J3) | SARADC_IN4 | AI | 1.8V | RK3588 | AM17 | SARADC_IN4 |
| 100(J3) | GND | PI | 0V |
Table 2: J4 Connector Interface Pin Definition
| PinNumber | Signal Name | Signal Type | IOVoltage | Main IC | IC Pin Number | IC Pin Name |
|---|---|---|---|---|---|---|
| 1(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 2(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 3(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 4(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 5(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 6(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 7(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 8(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 9(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 10(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 11(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 12(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 13(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 14(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 15(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 16(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 17(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 18(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 19(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 20(J4) | VCC4V0_SYS | PI | 4.0V | |||
| 21(J4) | GND | PI | 0V | |||
| 22(J4) | VCC_1V8_S0 | PO | 1.8V | |||
| 23(J4) | PCIE30_PORT0_TX1P | AO | RK3588 | C33 | PCIE30_PORT0_TX1P | |
| 24(J4) | VCC_1V8_S0 | PO | 1.8V | |||
| 25(J4) | PCIE30_PORT0_TX1N | AO | RK3588 | C34 | PCIE30_PORT0_TX1N | |
| 26(J4) | VCC_3V3_S0 | PO | 3.3V | |||
| 27(J4) | GND | PI | 0V | |||
| 28(J4) | VCC_3V3_S0 | PO | 3.3V | |||
| 29(J4) | PCIE30_PORT0_RX1N | AI | RK3588 | F33 | PCIE30_PORT0_RX1N | |
| 30(J4) | GND | PI | 0V | |||
| 31(J4) | PCIE30_PORT0_RX1P | AI | RK3588 | F32 | PCIE30_PORT0_RX1P | |
| 32(J4) | PCIE30_PORT0_RX0N | AI | RK3588 | G34 | PCIE30_PORT0_RX0N | |
| 33(J4) | GND | PI | 0V | |||
| 34(J4) | PCIE30_PORT0_RX0P | AI | RK3588 | G33 | PCIE30_PORT0_RX0P | |
| 35(J4) | PMIC_EXT_EN_OUT | O | MAX 4V | |||
| 36(J4) | GND | PI | 0V | |||
| 37(J4) | GPIO1_A4 | I/O | 1.8V | RK3588 | B25 | HDMI_TX1_SCL_M2/SPI2_MISO_M0/GPIO1_A4_d |
| 38(J4) | PCIE20_1_RXN/SATA30_1 _RXN | AI | RK3588 | J34 | PCIE20_1_RXN/SATA30_1_RXN | |
| 39(J4) | GPIO1_A1 | I/O | 1.8V | RK3588 | A25 | PCIE30X1_1_WAKEN_M2/DP1_HPDIN_M2/SATA1 _ACT_LED_M1/I2C2_SCL_M4/UART6_TX_M1/SPI 4_MOSI_M2/GPIO1_A1_d |
| 40(J4) | PCIE20_1_RXP/SATA30_1 _RXP | AI | RK3588 | J33 | PCIE20_1_RXP/SATA30_1_RXP | |
| 41(J4) | GPIO1_B7 | I/O | 1.8V | RK3588 | E27 | MIPI_CAMERA2_CLK_M0/SPDIF1_TX_M0/PCIE30 X2_PERSTN_M3/HDMI_RX_CEC_M2/SATA2_ACT_ LED_M1/I2C5_SDA_M3/UART1_RX_M1/PWM13_ M2/GPIO1_B7_u |
| 42(J4) | GND | PI | 0V | |||
| 43(J4) | GPIO1_A2 | I/O | 1.8V | RK3588 | A26 | VOP_POST_EMPTY/I2C4_SDA_M3/UART6_RTSN_ M1/PWM0_M2/SPI4_CLK_M2/GPIO1_A2_d |
| 44(J4) | ETH1_REFCLKO_25M | I/O | RK3588 | AH27 | ETH1_REFCLKO_25M/MIPI_CAMERA1_CLK_M1/I2 C4_SCL_M0/GPIO3_A6_d | |
| 45(J4) | GPIO1_A5 | I/O | 1.8V | RK3588 | B26 | HDMI_TX0_HPD_M0/SPI2_MOSI_M0/GPIO1_A5_d |
| 46(J4) | GMAC1_RXD2 | I/O | RK3588 | AD27 | GMAC1_RXD2/SDIO_D2_M1/I2S3_LRCK/AUDDSM _LP/FSPI_D2_M2/UART8_TX_M1/SPI4_CLK_M1/G PIO3_A2_u | |
| 47(J4) | GPIO1_A3 | I/O | 1.8V | RK3588 | A27 | HDMI_TX1_SDA_M2/I2C4_SCL_M3/UART6_CTSN _M1/PWM1_M2/SPI4_CS0_M2/GPIO1_A3_d |
| 48(J4) | GMAC1_RXDV_CRS | I/O | RK3588 | AH29 | GMAC1_RXDV_CRS/MIPI_CAMERA4_CLK_M1/UA RT2_TX_M2/PWM2_M1/GPIO3_B1_d | |
| 49(J4) | GPIO1_B0 | I/O | 1.8V | RK3588 | C27 | PDM1_SDI1_M1/PCIE30X4_CLKREQN_M3/SPI2_C S1_M0/GPIO1_B0_u |
| 50(J4) | GMAC1_RXCLK | I/O | RK3588 | AH30 | GMAC1_RXCLK/SDIO_CLK_M1/MIPI_CAMERA0_C LK_M1/FSPI_CLK_M2/I2C4_SDA_M0/UART8_CTS N_M1/GPIO3_A5_d | |
| 51(J4) | GND | PI | 0V | |||
| 52(J4) | GMAC1_RXD3 | I/O | RK3588 | AE27 | GMAC1_RXD3/SDIO_D3_M1/I2S3_SDO/AUDDSM_ RN/FSPI_D3_M2/UART8_RX_M1/SPI4_CS0_M1/G PIO3_A3_u | |
| 53(J4) | PCIE30_PORT1_REFCLKP_ IN | AI | RK3588 | A28 | PCIE30_PORT1_REF_CLKP | |
| 54(J4) | GMAC1_RXD0 | I/O | RK3588 | AG29 | GMAC1_RXD0/MIPI_CAMERA2_CLK_M1/PWM8_ M0/GPIO3_A7_u | |
| 55(J4) | PCIE30_PORT1_REFCLKN _IN | AI | RK3588 | B28 | PCIE30_PORT1_REF_CLKN | |
| 56(J4) | GMAC1_RXD1 | I/O | RK3588 | AG28 | GMAC1_RXD1/MIPI_CAMERA3_CLK_M1/PWM9_ M0/GPIO3_B0_u | |
| 57(J4) | GND | PI | 0V | |||
| 58(J4) | GND | PI | 0V | |||
| 59(J4) | PCIE30_PORT1_TX3N | AO | RK3588 | B29 | PCIE30_PORT1_TX1N | |
| 60(J4) | GPIO1_C6 | I/O | 1.8V | RK3588 | D29 | PDM0_CLK0_M0/I2C4_SDA_M4/PWM15_IR_M2/G PIO1_C6_d |
| 61(J4) | PCIE30_PORT1_TX3P | AO | RK3588 | C29 | PCIE30_PORT1_TX1P | |
| 62(J4) | GPIO1_C5 | I/O | 1.8V | RK3588 | D30 | I2S0_LRCK/I2C2_SCL_M3/UART4_RTSN/GPIO1_C 5_d |
| 63(J4) | GND | PI | 0V | |||
| 64(J4) | GPIO1_C3 | I/O | 1.8V | RK3588 | E31 | I2S0_SCLK/I2C6_SCL_M1/UART3_CTSN/PWM7_I R_M2/SPI4_CS0_M0/GPIO1_C3_d |
| 65(J4) | PCIE30_PORT1_TX2N | AO | RK3588 | A30 | PCIE30_PORT1_TX0N | |
| 66(J4) | GPIO1_C4 | I/O | 1.8V | RK3588 | E30 | PDM0_CLK1_M0/I2C2_SDA_M3/PWM11_IR_M2/S PI4_CS1_M0/GPIO1_C4_d |
| 67(J4) | PCIE30_PORT1_TX2P | AO | RK3588 | B30 | PCIE30_PORT1_TX0P | |
| 68(J4) | GPIO1_C7 | I/O | 1.8V | RK3588 | E29 | I2S0_SDO0/I2C4_SCL_M4/UART4_CTSN/GPIO1_C 7_d |
| 69(J4) | GND | PI | 0V | |||
| 70(J4) | GND | PI | 0V | |||
| 71(J4) | PCIE20_2_TXN | AO | RK3588 | H29 | PCIE20_2_TXN/SATA30_2_TXN/USB30_2_SSTXN | |
| 72(J4) | PCIE20_2_RXP | AI | RK3588 | J31 | PCIE20_2_RXP/SATA30_2_RXP/USB30_2_SSRXP | |
| 73(J4) | PCIE20_2_TXP | AO | RK3588 | H30 | PCIE20_2_TXP/SATA30_2_TXP/USB30_2_SSTXP | |
| 74(J4) | PCIE20_2_RXN | AI | RK3588 | J30 | PCIE20_2_RXN/SATA30_2_RXN/USB30_2_SSRXN | |
| 75(J4) | GND | PI | 0V | |||
| 76(J4) | GND | PI | 0V | |||
| 77(J4) | PCIE20_0_REFCLKP | AI/O | RK3588 | L32 | PCIE20_0_REFCLKP | |
| 78(J4) | GPIO4_A0 | I/O | 3.3V | RK3588 | AK30 | CIF_D0/BT1120_D0/I2S1_MCLK_M0/PCIE30X1_1_ CLKREQN_M1/UART9_RTSN_M1/SPI0_MISO_M1/ GPIO4_A0_d |
| 79(J4) | PCIE20_0_REFCLKN | AI/O | RK3588 | L33 | PCIE20_0_REFCLKN | |
| 80(J4) | GPIO4_A1 | I/O | 3.3V | RK3588 | AL30 | CIF_D1/BT1120_D1/I2S1_SCLK_M0/PCIE30X1_1_ WAKEN_M1/UART9_CTSN_M1/SPI0_MOSI_M1/GP IO4_A1_d |
| 81(J4) | GND | PI | 0V | |||
| 82(J4) | GPIO4_A5 | I/O | 3.3V | RK3588 | AK27 | CIF_D5/BT1120_D5/I2S1_SDI0_M0/PCIE30X1_0_P ERSTN_M1/I2C3_SDA_M2/UART3_TX_M2/SPI2_M OSI_M1/GPIO4_A5_d |
| 83(J4) | GPIO2_B4 | I/O | 1.8V | RK3588 | AB31 | GMAC0_PTP_REFCLK/FSPI_CS0N_M1/HDMI_TX1 _SDA_M0/I2C4_SDA_M1/UART7_RX_M0/GPIO2_B 4_u |
| 84(J4) | PWRON_L | I | ||||
| 85(J4) | GPIO2_A6 | I/O | 1.8V | RK3588 | AC32 | GMAC0_RXD2/SDIO_D0_M0/FSPI_D0_M1/UART6 _RX_M0/GPIO2_A6_u |
| 86(J4) | RESET_L | I | RK3588 | M31 | NPOR | |
| 87(J4) | GPIO2_A7 | I/O | 1.8V | RK3588 | AC31 | GMAC0_RXD3/SDIO_D1_M0/FSPI_D1_M1/UART6 _TX_M0/GPIO2_A7_u |
| 88(J4) | GPIO4_A3 | I/O | 3.3V | RK3588 | AL29 | CIF_D3/BT1120_D3/PCIE30X1_0_CLKREQN_M1/U ART0_TX_M2/GPIO4_A3_d |
| 89(J4) | GPIO2_C1 | I/O | 1.8V | RK3588 | AD32 | GMAC0_RXD0/I2C2_SCL_M1/UART1_CTSN_M0/S PI1_MISO_M0/GPIO2_C1_d |
| 90(J4) | GPIO4_A2 | I/O | 3.3V | RK3588 | AM29 | CIF_D2/BT1120_D2/I2S1_LRCK_M0/PCIE30X1_1_ PERSTN_M1/SPI0_CLK_M1/GPIO4_A2_d |
| 91(J4) | GPIO2_C5 | I/O | 1.8V | RK3588 | AE30 | CLK32K_OUT1/GPIO2_C5_d |
| 92(J4) | GPIO4_A4 | I/O | 3.3V | RK3588 | AL28 | CIF_D4/BT1120_D4/PCIE30X1_0_WAKEN_M1/I2C 3_SCL_M2/UART0_RX_M2/SPI2_MISO_M1/GPIO4 _A4_d |
| 93(J4) | GPIO2_C3 | I/O | 1.8V | RK3588 | AD30 | ETH0_REFCLKO_25M/I2S2_SDI_M0/I2C6_SCL_M 2/SPI1_CS0_M0/GPIO2_C3_d |
| 94(J4) | GPIO4_A6 | I/O | 3.3V | RK3588 | AL27 | CIF_D6/BT1120_D6/I2S1_SDI1_M0/PCIE30X2_CL KREQN_M1/I2C5_SCL_M2/UART3_RX_M2/SPI2_C LK_M1/GPIO4_A6_d |
| 95(J4) | GPIO2_B5 | I/O | 1.8V | RK3588 | AB30 | GMAC0_PPSTRIG/FSPI_CS1N_M1/HDMI_TX1_SC L_M0/I2C4_SCL_M1/UART7_TX_M0/GPIO2_B5_u |
| 96(J4) | GPIO4_A7 | I/O | 3.3V | RK3588 | AM27 | CIF_D7/BT1120_D7/I2S1_SDI2_M0/PCIE30X2_WA KEN_M1/I2C5_SDA_M2/SPI2_CS0_M1/GPIO4_A7 _d |
| 97(J4) | GPIO3_B2 | I/O | 3.3V | RK3588 | AE28 | GMAC1_TXER/I2S2_SDI_M1/UART2_RX_M2/PWM 3_IR_M1/GPIO3_B2_d |
| 98(J4) | GPIO4_B0 | I/O | 3.3V | RK3588 | AK26 | CIF_CLKIN/BT1120_CLKOUT/I2S1_SDI3_M0/PCIE3 0X2_PERSTN_M1/I2C6_SDA_M3/UART8_TX_M0/ SPI2_CS1_M1/GPIO4_B0_d |
| 99(J4) | GPIO4_C5 | I/O | 3.3V | RK3588 | AB33 | GMAC0_MDIO/I2C0_SCL_M1/UART9_CTSN_M0/P WM6_M2/SPI3_MOSI_M0/GPIO4_C5_d |
| 100(J4) | GND | PI | 0V |
Table 3: J5 Connector Interface Pin Definition
| PinNumber | Signal Name | Signal Type | IOVoltage | Main IC | IC Pin Number | IC Pin Name |
|---|---|---|---|---|---|---|
| 1(J5) | GND | PI | 0V | |||
| 2(J5) | GND | PI | 0V | |||
| 3(J5) | MIPI_DPHY0_RX_D1P | AI | RK3588 | AN30 | MIPI_DPHY0_RX_D1P/MIPI_CPHY0_RX_TRIO1_A | |
| 4(J5) | MIPI_DPHY0_RX_D2P | AI | RK3588 | AN33 | MIPI_DPHY0_RX_D2P/MIPI_CPHY0_RX_TRIO2_B | |
| 5(J5) | MIPI_DPHY0_RX_D1N | AI | RK3588 | AP30 | MIPI_DPHY0_RX_D1N/MIPI_CPHY0_RX_TRIO0_C | |
| 6(J5) | MIPI_DPHY0_RX_D2N | AI | RK3588 | AP32 | MIPI_DPHY0_RX_D2N/MIPI_CPHY0_RX_Trio2_A | |
| 7(J5) | GND | PI | 0V | |||
| 8(J5) | GND | PI | 0V | |||
| 9(J5) | MIPI_DPHY0_RX_D0P | AI | RK3588 | AN29 | MIPI_DPHY0_RX_D0P/MIPI_CPHY0_RX_TRIO0_B | |
| 10(J5) | MIPI_DPHY0_RX_CLKP | AI | RK3588 | AN32 | MIPI_DPHY0_RX_CLKP/MIPI_CPHY0_RX_TRIO1_ C | |
| 11(J5) | MIPI_DPHY0_RX_D0N | AI | RK3588 | AP29 | MIPI_DPHY0_RX_D0N/MIPI_CPHY0_RX_TRIO0_A | |
| 12(J5) | MIPI_DPHY0_RX_CLKN | AI | RK3588 | AP31 | MIPI_DPHY0_RX_CLKN/MIPI_CPHY0_RX_TRIO1_ B | |
| 13(J5) | GND | PI | 0V | |||
| 14(J5) | GND | PI | 0V | |||
| 15(J5) | MIPI_DPHY0_TX_D2N | AO | RK3588 | AP27 | MIPI_DPHY0_TX_D2N/MIPI_CPHY0_TX_TRIO2_A | |
| 16(J5) | MIPI_DPHY0_TX_D3P | AO | RK3588 | AN28 | MIPI_DPHY0_TX_D3P/NO_USE | |
| 17(J5) | MIPI_DPHY0_TX_D2P | AO | RK3588 | AN27 | MIPI_DPHY0_TX_D2P/MIPI_CPHY0_TX_TRIO2_B | |
| 18(J5) | MIPI_DPHY0_TX_D3N | AO | RK3588 | AP28 | MIPI_DPHY0_TX_D3N/MIPI_CPHY0_TX_TRIO2_C | |
| 19(J5) | GND | PI | 0V | |||
| 20(J5) | GND | PI | 0V | |||
| 21(J5) | MIPI_DPHY0_TX_CLKP | AO | RK3588 | AN26 | MIPI_DPHY0_TX_CLKP/MIPI_CPHY0_TX_TRIO1_C | |
| 22(J5) | GPIO4_B4 | GPIO | 3.3V | RK3588 | AL26 | CIF_CLKOUT/BT1120_D10/I2S1_SDO3_M0/PCIE30 X4_CLKREQN_M1/DP0_HPDIN_M0/SPDIF0_TX_M 1/UART9_TX_M1/PWM11_IR_M1/GPIO4_B4_u |
| 23(J5) | MIPI_DPHY0_TX_CLKN | AO | RK3588 | AP26 | MIPI_DPHY0_TX_CLKN/MIPI_CPHY0_TX_TRIO1_ B | |
| 24(J5) | GPIO4_B2 | GPIO | 3.3V | RK3588 | AK25 | CIF_HREF/BT1120_D8/I2S1_SDO1_M0/PCIE30X1_ 1_BUTTON_RSTN/I2C7_SCL_M3/UART8_RTSN_M 0/PWM14_M1/SPI0_CS0_M1/CAN1_RX_M1/GPIO4 _B2_u |
| 25(J5) | GND | PI | 0V | |||
| 26(J5) | GPIO4_B3 | GPIO | 3.3V | RK3588 | AM25 | CIF_VSYNC/BT1120_D9/I2S1_SDO2_M0/PCIE20X1 2_BUTTON_RSTN/I2C7_SDA_M3/UART8_CTSN M0/PWM15_IR_M1/CAN1_TX_M1/GPIO4_B3_u |
| 27(J5) | MIPI_DPHY0_TX_D1P | AO | RK3588 | AN25 | MIPI_DPHY0_TX_D1P/MIPI_CPHY0_TX_TRIO1_A | |
| 28(J5) | GPIO4_B1 | GPIO | 3.3V | RK3588 | AL24 | MIPI_CAMERA0_CLK_M0/SPDIF1_TX_M1/I2S1_S DO0_M0/PCIE30X1_0_BUTTON_RSTN/SATA2_AC T_LED_M0/I2C6_SCL_M3/UART8_RX_M0/SPI0_C S1_M1/GPIO4_B1_u |
| 29(J5) | MIPI_DPHY0_TX_D1N | AO | RK3588 | AP25 | MIPI_DPHY0_TX_D1N/MIPI_CPHY0_TX_TRIO0_C | |
| 30(J5) | GPIO4_C1 | GPIO | 3.3V | RK3588 | AK24 | BT1120_D15/SPDIF1_TX_M2/PCIE20X1_2_PERST N_M1/HDMI_TX0_CEC_M0/I2C8_SDA_M3/PWM6_ M1/SPI3_CS1_M1/GPIO4_C1_d |
| 31(J5) | GND | PI | 0V | |||
| 32(J5) | GND | PI | 0V | |||
| 33(J5) | MIPI_DPHY0_TX_D0P | AO | RK3588 | AN24 | MIPI_DPHY0_TX_D0P/MIPI_CPHY0_TX_TRIO0_B | |
| 34(J5) | MIPI_DPHY1_TX_D3N | AO | RK3588 | AP22 | MIPI_DPHY1_TX_D3N/MIPI_CPHY1_TX_TRIO2_C | |
| 35(J5) | MIPI_DPHY0_TX_D0N | AO | RK3588 | AP24 | MIPI_DPHY0_TX_D0N/MIPI_CPHY0_TX_TRIO0_A | |
| 36(J5) | MIPI_DPHY1_TX_D3P | AO | RK3588 | AN22 | MIPI_DPHY1_TX_D3P/NO_USE | |
| 37(J5) | GND | PI | 0V | |||
| 38(J5) | GND | PI | 0V | |||
| 39(J5) | MIPI_DPHY1_TX_D2P | AO | RK3588 | AN21 | MIPI_DPHY1_TX_D2P/MIPI_CPHY1_TX_TRIO2_B | |
| 40(J5) | MIPI_DPHY1_TX_CLKN | AO | RK3588 | AP20 | MIPI_DPHY1_TX_CLKN/MIPI_CPHY1_TX_TRIO1_ B | |
| 41(J5) | MIPI_DPHY1_TX_D2N | AO | RK3588 | AP21 | MIPI_DPHY1_TX_D2N/MIPI_CPHY1_TX_TRIO2_A | |
| 42(J5) | MIPI_DPHY1_TX_CLKP | AO | RK3588 | AN20 | MIPI_DPHY1_TX_CLKP/MIPI_CPHY1_TX_TRIO1_C | |
| 43(J5) | GND | PI | 0V | |||
| 44(J5) | GND | PI | 0V | |||
| 45(J5) | MIPI_DPHY1_TX_D1N | AO | RK3588 | AP19 | MIPI_DPHY1_TX_D1N/MIPI_CPHY1_TX_TRIO0_C | |
| 46(J5) | MIPI_DPHY1_TX_D0N | AO | RK3588 | AP18 | MIPI_DPHY1_TX_D0N/MIPI_CPHY1_TX_TRIO0_A | |
| 47(J5) | MIPI_DPHY1_TX_D1P | AO | RK3588 | AN19 | MIPI_DPHY1_TX_D1P/MIPI_CPHY1_TX_TRIO1_A | |
| 48(J5) | MIPI_DPHY1_TX_D0P | AO | RK3588 | AN18 | MIPI_DPHY1_TX_D0P/MIPI_CPHY1_TX_TRIO0_B | |
| 49(J5) | GND | PI | 0V | |||
| 50(J5) | GND | PI | 0V | |||
| 51(J5) | TYPEC0_SSTX2P/DP0_TX 3P | AO | RK3588 | AP16 | TYPEC0_SSTX2P/DP0_TX3P | |
| 52(J5) | TYPEC0_SSRX2P/DP0_TX 2P | AI/O | RK3588 | AN15 | TYPEC0_SSRX2P/DP0_TX2P | |
| 53(J5) | TYPEC0_SSTX2N/DP0_TX 3N | AO | RK3588 | AN16 | TYPEC0_SSTX2N/DP0_TX3N | |
| 54(J5) | TYPEC0_SSRX2N/DP0_TX 2N | AI/O | RK3588 | AP15 | TYPEC0_SSRX2N/DP0_TX2N | |
| 55(J5) | GND | PI | 0V | |||
| 56(J5) | GND | PI | 0V | |||
| 57(J5) | TYPEC1_SSRX2P/DP1_TX 2P | AI/O | RK3588 | AN10 | TYPEC1_SSRX2P/DP1_TX2P | |
| 58(J5) | TYPEC0_SSTX1N/DP0_TX 1N | AO | RK3588 | AN14 | TYPEC0_SSTX1N/DP0_TX1N | |
| 59(J5) | TYPEC1_SSRX2N/DP1_TX 2N | AI/O | RK3588 | AP10 | TYPEC1_SSRX2N/DP1_TX2N | |
| 60(J5) | TYPEC0_SSTX1P/DP0_TX 1P | AO | RK3588 | AP14 | TYPEC0_SSTX1P/DP0_TX1P | |
| 61(J5) | GND | PI | 0V | |||
| 62(J5) | GND | PI | 0V | |||
| 63(J5) | TYPEC1_SSTX1P/DP1_TX 1P | AO | RK3588 | AP9 | TYPEC1_SSTX1P/DP1_TX1P | |
| 64(J5) | TYPEC0_SSRX1P/DP0_TX 0P | AI/O | RK3588 | AN13 | TYPEC0_SSRX1P/DP0_TX0P | |
| 65(J5) | TYPEC1_SSTX1N/DP1_TX 1N | AO | RK3588 | AN9 | TYPEC1_SSTX1N/DP1_TX1N | |
| 66(J5) | TYPEC0_SSRX1N/DP0_TX 0N | AI/O | RK3588 | AP13 | TYPEC0_SSRX1N/DP0_TX0N | |
| 67(J5) | GND | PI | 0V | |||
| 68(J5) | GND | PI | 0V | |||
| 69(J5) | TYPEC1_SSRX1N/DP1_TX 0N | AI/O | RK3588 | AP8 | TYPEC1_SSRX1N/DP1_TX0N | |
| 70(J5) | TYPEC1_SSTX2P/DP1_TX 3P | AO | RK3588 | AP11 | TYPEC1_SSTX2P/DP1_TX3P | |
| 71(J5) | TYPEC1_SSRX1P/DP1_TX 0P | AI/O | RK3588 | AN8 | TYPEC1_SSRX1P/DP1_TX0P | |
| 72(J5) | TYPEC1_SSTX2N/DP1_TX 3N | AO | RK3588 | AN11 | TYPEC1_SSTX2N/DP1_TX3N | |
| 73(J5) | GND | PI | 0V | |||
| 74(J5) | GND | PI | 0V | |||
| 75(J5) | HDMI1_TX2P_PORT/EDP1 _TX_D2P | AO | RK3588 | AN6 | HDMI_TX1_D2P/EDP_TX1_D2P | |
| 76(J5) | TYPEC1_SBU2/DP1_AUXN | AI/O | RK3588 | AM10 | TYPEC1_SBU2/DP1_AUXN | |
| 77(J5) | HDMI1_TX2N_PORT/EDP1 _TX_D2N | AO | RK3588 | AP6 | HDMI_TX1_D2N/EDP_TX1_D2N | |
| 78(J5) | TYPEC1_SBU1/DP1_AUXP | AI/O | RK3588 | AL10 | TYPEC1_SBU1/DP1_AUXP | |
| 79(J5) | GND | PI | 0V | |||
| 80(J5) | GND | PI | 0V | |||
| 81(J5) | HDMI1_TX1P_PORT/EDP1 _TX_D1P | AO | RK3588 | AM5 | HDMI_TX1_D1P/EDP_TX1_D1P | |
| 82(J5) | TYPEC1_OTG_DM | AI/O | RK3588 | AL9 | TYPEC1_USB20_OTG_DM | |
| 83(J5) | HDMI1_TX1N_PORT/EDP1 _TX_D1N | AO | RK3588 | AN5 | HDMI_TX1_D1N/EDP_TX1_D1N | |
| 84(J5) | TYPEC1_OTG_DP | AI/O | RK3588 | AK9 | TYPEC1_USB20_OTG_DP | |
| 85(J5) | GND | PI | 0V | |||
| 86(J5) | GND | PI | 0V | |||
| 87(J5) | HDMI1_TX0P_PORT/EDP1 _TX_D0P | AO | RK3588 | AN4 | HDMI_TX1_D0P/EDP_TX1_D0P | |
| 88(J5) | TYPEC0_SBU2/DP0_AUXN | AI/O | RK3588 | AM15 | TYPEC0_SBU2/DP0_AUXN | |
| 89(J5) | HDMI1_TX0N_PORT/EDP1 _TX_D0N | AO | RK3588 | AP4 | HDMI_TX1_D0N/EDP_TX1_D0N | |
| 90(J5) | TYPEC0_SBU1/DP0_AUXP | AI/O | RK3588 | AL15 | TYPEC0_SBU1/DP0_AUXP | |
| 91(J5) | GND | PI | 0V | |||
| 92(J5) | GND | PI | 0V | |||
| 93(J5) | HDMI1_TX3P_PORT/EDP1 _TX_D3P | AO | RK3588 | AM3 | HDMI_TX1_D3P/EDP_TX1_D3P | |
| 94(J5) | TYPEC0_OTG_DP | AI/O | RK3588 | AL12 | TYPEC0_USB20_OTG_DP | |
| 95(J5) | HDMI1_TX3N_PORT/EDP1 _TX_D3N | AO | RK3588 | AN3 | HDMI_TX1_D3N/EDP_TX1_D3N | |
| 96(J5) | TYPEC0_OTG_DM | AI/O | RK3588 | AM12 | TYPEC0_USB20_OTG_DM | |
| 97(J5) | GND | PI | 0V | |||
| 98(J5) | GND | PI | 0V | |||
| 99(J5) | GPIO4_B5 | GPIO | 3.3V | RK3588 | AJ26 | BT1120_D11/PCIE30X4_WAKEN_M1/HDMI_RX_C EC_M0/SATA1_ACT_LED_M0/UART9_RX_M1/PW M12_M1/SPI3_MISO_M1/GPIO4_B5_d |
| 100(J5) | GPIO4_C0 | GPIO | 3.3V | RK3588 | AJ25 | BT1120_D14/PCIE20X1_2_WAKEN_M1/HDMI_TX0 _SDA_M0/I2C8_SCL_M3/SPI3_CS0_M1/GPIO4_C0 _u |
Table 4: J6 Connector Interface Pin Definition
| PinNumber | Signal Name | Signal Type | IOVoltage | Main IC | IC Pin Number | IC Pin Name |
|---|---|---|---|---|---|---|
| 1(J6) | GND | PI | 0V | |||
| 2(J6) | GND | PI | 0V | |||
| 3(J6) | PCIE30_PORT0_REFCLKN _IN | AI | RK3588 | E34 | PCIE30_PORT0_REF_CLKN | |
| 4(J6) | PCIE20_1_REFCLKP | AI/O | RK3588 | H32 | PCIE20_1_REFCLKP | |
| 5(J6) | PCIE30_PORT0_REFCLKP_ IN | AI | RK3588 | E33 | PCIE30_PORT0_REF_CLKP | |
| 6(J6) | PCIE20_1_REFCLKN | AI/O | RK3588 | H33 | PCIE20_1_REFCLKN | |
| 7(J6) | GND | PI | 0V | |||
| 8(J6) | GND | PI | 0V | |||
| 9(J6) | PCIE30_PORT0_TX0P | AO | RK3588 | D32 | PCIE30_PORT0_TX0P | |
| 10(J6) | PCIE20_1_TXN/SATA30_1 _TXN | AO | RK3588 | K34 | PCIE20_1_TXN/SATA30_1_TXN | |
| 11(J6) | PCIE30_PORT0_TX0N | AO | RK3588 | D33 | PCIE30_PORT0_TX0N | |
| 12(J6) | PCIE20_1_TXP/SATA30_1 _TXP | AO | RK3588 | K33 | PCIE20_1_TXP/SATA30_1_TXP | |
| 13(J6) | GND | PI | 0V | |||
| 14(J6) | GND | PI | 0V | |||
| 15(J6) | PCIE30_PORT1_RX3N | AI | RK3588 | B31 | PCIE30_PORT1_RX1N | |
| 16(J6) | PCIE20_0_TXP/SATA30_0 _TXP | AO | RK3588 | M34 | PCIE20_0_TXP/SATA30_0_TXP | |
| 17(J6) | PCIE30_PORT1_RX3P | AI | RK3588 | C31 | PCIE30_PORT1_RX1P | |
| 18(J6) | PCIE20_0_TXN/SATA30_0 _TXN | AO | RK3588 | M33 | PCIE20_0_TXN/SATA30_0_TXN | |
| 19(J6) | GND | PI | 0V | |||
| 20(J6) | GND | PI | 0V | |||
| 21(J6) | PCIE30_PORT1_RX2P | AI | RK3588 | B32 | PCIE30_PORT1_RX0P | |
| 22(J6) | PCIE20_0_RXN/SATA30_0 _RXN | AI | RK3588 | N34 | PCIE20_0_RXN/SATA30_0_RXN | |
| 23(J6) | PCIE30_PORT1_RX2N | AI | RK3588 | A32 | PCIE30_PORT1_RX0N | |
| 24(J6) | PCIE20_0_RXP/SATA30_0 _RXP | AI | RK3588 | N33 | PCIE20_0_RXP/SATA30_0_RXP | |
| 25(J6) | GND | PI | 0V | |||
| 26(J6) | GND | PI | 0V | |||
| 27(J6) | PCIE20_2_REFCLKN | AI/O | RK3588 | G30 | PCIE20_2_REFCLKN | |
| 28(J6) | GPIO0_C2 | I/O | 1.8V | RK3588 | T32 | PMIC_SLEEP4/GPIO0_C2_d |
| 29(J6) | PCIE20_2_REFCLKP | AI/O | RK3588 | G31 | PCIE20_2_REFCLKP | |
| 30(J6) | GPIO0_D3 | I/O | 1.8V | RK3588 | U33 | LITCPU_AVS/SPI3_CLK_M2/GPIO0_D3_u |
| 31(J6) | GND | PI | 0V | |||
| 32(J6) | GPIO0_C0 | I/O | 1.8V | RK3588 | T31 | PDM0_CLK0_M1/PWM1_M0/I2C2_SDA_M0/CAN0 RX_M0/SPI0_MOSI_M0/PCIE30X1_0_CLKREQN M0/GPIO0_C0_d |
| 33(J6) | GMAC1_MDC | I/O | RK3588 | Y31 | GMAC1_MDC/MIPI_TE0/I2C8_SCL_M4/UART7_RT SN_M1/PWM14_M0/SPI1_CS0_M1/GPIO3_C2_d | |
| 34(J6) | I2C6_SDA_M0 | I/O | 1.8V | RK3588 | V31 | I2S1_SDI2_M1/PDM0_SDI0_M1/I2C6_SDA_M0/U ART1_RTSN_M2/PWM6_M0/SPI0_MISO_M0/PCIE 30X4_WAKEN_M0/GPIO0_C7_d |
| 35(J6) | GMAC1_RSTN_L | I/O | RK3588 | AA28 | GMAC1_PTP_REF_CLK/HDMI_TX1_HPD_M1/I2C3 _SCL_M1/SPI1_MOSI_M1/GPIO3_B7_d | |
| 36(J6) | I2C6_SCL_M0 | I/O | 1.8V | RK3588 | W31 | I2S1_SDI3_M1/PDM0_SDI1_M1/I2C6_SCL_M0/UA RT1_CTSN_M2/PWM7_IR_M0/SPI3_MISO_M2/PCI E30X4_PERSTN_M0/GPIO0_D0_d |
| 37(J6) | GND | PI | 0V | |||
| 38(J6) | GND | PI | 0V | |||
| 39(J6) | GPIO4_C4 | I/O | 1.8V | RK3588 | AB34 | GMAC0_MDC/I2C7_SDA_M1/UART9_RTSN_M0/P WM5_M2/SPI3_MISO_M0/GPIO4_C4_d |
| 40(J6) | GMAC1_MDIO | I/O | RK3588 | Y30 | GMAC1_MDIO/MIPI_TE1/I2C8_SDA_M4/UART7_C TSN_M1/PWM15_IR_M0/SPI1_CS1_M1/GPIO3_C3 _d | |
| 41(J6) | GPIO2_B2 | I/O | 1.8V | RK3588 | AC34 | GMAC0_TXD3/SDIO_CMD_M0/I2C3_SCL_M3/GPI O2_B2_u |
| 42(J6) | GMAC1_TXD2 | I/O | RK3588 | AA29 | GMAC1_TXD2/SDIO_D0_M1/I2S3_MCLK/FSPI_D0 _M2/I2C6_SDA_M4/PWM10_M0/SPI4_MISO_M1/ GPIO3_A0_u | |
| 43(J6) | GPIO2_B1 | I/O | 1.8V | RK3588 | AC33 | GMAC0_TXD2/SDIO_D3_M0/FSPI_D3_M1/I2C8_S DA_M1/UART6_CTSN_M0/GPIO2_B1_u |
| 44(J6) | GMAC1_TXD3 | I/O | RK3588 | AA30 | GMAC1_TXD3/SDIO_D1_M1/I2S3_SCLK/AUDDSM _LN/FSPI_D1_M2/I2C6_SCL_M4/PWM11_IR_M0/S PI4_MOSI_M1/GPIO3_A1_u | |
| 45(J6) | GPIO2_C0 | I/O | 1.8V | RK3588 | AE34 | GMAC0_TXEN/I2S2_LRCK_M0/I2C2_SDA_M1/UAR T1_RTSN_M0/SPI1_CLK_M0/GPIO2_C0_d |
| 46(J6) | GMAC1_TXD0 | I/O | RK3588 | AC28 | GMAC1_TXD0/I2S2_SDO_M1/UART2_RTSN/GPIO3 _B3_u | |
| 47(J6) | GPIO2_B6 | I/O | 1.8V | RK3588 | AD33 | GMAC0_TXD0/I2S2_MCLK_M0/I2C5_SCL_M4/UA RT1_RX_M0/GPIO2_B6_d |
| 48(J6) | GMAC1_TXD1 | I/O | RK3588 | AC29 | GMAC1_TXD1/I2S2_MCLK_M1/UART2_CTSN/GPI O3_B4_u | |
| 49(J6) | GPIO2_B7 | I/O | 1.8V | RK3588 | AD34 | GMAC0_TXD1/I2S2_SCLK_M0/I2C5_SDA_M4/UAR T1_TX_M0/GPIO2_B7_d |
| 50(J6) | GMAC1_TXEN | I/O | RK3588 | AD29 | GMAC1_TXEN/I2S2_SCLK_M1/CAN1_RX_M0/UAR T3_TX_M1/PWM12_M0/GPIO3_B5_u | |
| 51(J6) | GPIO2_B3 | I/O | 1.8V | RK3588 | AE33 | GMAC0_TXCLK/SDIO_CLK_M0/FSPI_CLK_M1/I2C 3_SDA_M3/GPIO2_B3_d |
| 52(J6) | GMAC1_MCLKINOUT | I/O | RK3588 | AE29 | GMAC1_MCLKINOUT/I2S2_LRCK_M1/CAN1_TX_ M0/UART3_RX_M1/PWM13_M0/GPIO3_B6_d | |
| 53(J6) | GPIO4_C6 | I/O | 1.8V | RK3588 | AF33 | GMAC0_TXER/I2C0_SDA_M1/UART7_CTSN_M0/P WM7_IR_M3/SPI3_CLK_M0/GPIO4_C6_d |
| 54(J6) | GMAC1_TXCLK | I/O | RK3588 | AD28 | GMAC1_TXCLK/SDIO_CMD_M1/I2S3_SDI/AUDDS M_RP/UART8_RTSN_M1/SPI4_CS1_M1/GPIO3_A4 _d | |
| 55(J6) | GPIO4_C3 | I/O | 1.8V | RK3588 | AF34 | GMAC0_MCLKINOUT/I2S2_SDO_M0/I2C7_SCL_M 1/PWM4_M1/SPI3_CS1_M0/GPIO4_C3_d |
| 56(J6) | GND | PI | 0V | |||
| 57(J6) | GND | PI | 0V | |||
| 58(J6) | MIPI_CSI1_RX_D0N | AI | RK3588 | AG32 | MIPI_CSI1_D0N | |
| 59(J6) | MIPI_CSI0_RX_D0P | AI | RK3588 | AG33 | MIPI_CSI0_D0P | |
| 60(J6) | MIPI_CSI1_RX_D0P | AI | RK3588 | AG31 | MIPI_CSI1_D0P | |
| 61(J6) | MIPI_CSI0_RX_D0N | AI | RK3588 | AG34 | MIPI_CSI0_D0N | |
| 62(J6) | GND | PI | 0V | |||
| 63(J6) | GND | PI | 0V | |||
| 64(J6) | MIPI_CSI1_RX_D1N | AI | RK3588 | AH32 | MIPI_CSI1_D1N | |
| 65(J6) | MIPI_CSI0_RX_D1N | AI | RK3588 | AH34 | MIPI_CSI0_D1N | |
| 66(J6) | MIPI_CSI1_RX_D1P | AI | RK3588 | AH31 | MIPI_CSI1_D1P | |
| 67(J6) | MIPI_CSI0_RX_D1P | AI | RK3588 | AH33 | MIPI_CSI0_D1P | |
| 68(J6) | GND | PI | 0V | |||
| 69(J6) | GND | PI | 0V | |||
| 70(J6) | MIPI_CSI1_RX_CLK0N | AI | RK3588 | AJ32 | MIPI_CSI1_CLK0N | |
| 71(J6) | MIPI_CSI0_RX_CLK0P | AI | RK3588 | AJ33 | MIPI_CSI0_CLK0P | |
| 72(J6) | MIPI_CSI1_RX_CLK0P | AI | RK3588 | AJ31 | MIPI_CSI1_CLK0P | |
| 73(J6) | MIPI_CSI0_RX_CLK0N | AI | RK3588 | AJ34 | MIPI_CSI0_CLK0N | |
| 74(J6) | GND | PI | 0V | |||
| 75(J6) | GND | PI | 0V | |||
| 76(J6) | MIPI_CSI1_RX_D2N | AI | RK3588 | AK32 | MIPI_CSI1_D2N | |
| 77(J6) | MIPI_CSI0_RX_D2P | AI | RK3588 | AK33 | MIPI_CSI0_D2P | |
| 78(J6) | MIPI_CSI1_RX_D2P | AI | RK3588 | AK31 | MIPI_CSI1_D2P | |
| 79(J6) | MIPI_CSI0_RX_D2N | AI | RK3588 | AK34 | MIPI_CSI0_D2N | |
| 80(J6) | GND | PI | 0V | |||
| 81(J6) | GND | PI | 0V | |||
| 82(J6) | MIPI_CSI1_RX_D3N | AI | RK3588 | AL32 | MIPI_CSI1_D3N | |
| 83(J6) | MIPI_CSI0_RX_D3N | AI | RK3588 | AL34 | MIPI_CSI0_D3N | |
| 84(J6) | MIPI_CSI1_RX_D3P | AI | RK3588 | AL31 | MIPI_CSI1_D3P | |
| 85(J6) | MIPI_CSI0_RX_D3P | AI | RK3588 | AL33 | MIPI_CSI0_D3P | |
| 86(J6) | GND | PI | 0V | |||
| 87(J6) | GND | PI | 0V | |||
| 88(J6) | MIPI_CSI1_RX_CLK1N | AI | RK3588 | AM32 | MIPI_CSI1_CLK1N | |
| 89(J6) | MIPI_CSI0_RX_CLK1P | AI | RK3588 | AM33 | MIPI_CSI0_CLK1P | |
| 90(J6) | MIPI_CSI1_RX_CLK1P | AI | RK3588 | AM31 | MIPI_CSI1_CLK1P | |
| 91(J6) | MIPI_CSI0_RX_CLK1N | AI | RK3588 | AM34 | MIPI_CSI0_CLK1N | |
| 92(J6) | GND | PI | 0V | |||
| 93(J6) | GND | PI | 0V | |||
| 94(J6) | GPIO2_B0 | I/O | 1.8V | RK3588 | AE32 | GMAC0_RXCLK/SDIO_D2_M0/FSPI_D2_M1/I2C8_ SCL_M1/UART6_RTSN_M0/GPIO2_B0_u |
| 95(J6) | MIPI_DPHY0_RX_D3N | AI | RK3588 | AP33 | MIPI_DPHY0_RX_D3N/MIPI_CPHY0_RX_TRIO2_C | |
| 96(J6) | GPIO4_C2 | I/O | 1.8V | RK3588 | AE31 | GMAC0_RXDV_CRS/UART7_RTSN_M0/PWM2_M2 /SPI3_CS0_M0/GPIO4_C2_d |
| 97(J6) | MIPI_DPHY0_RX_D3P | AI | RK3588 | AN34 | MIPI_DPHY0_RX_D3P/NO_USE | |
| 98(J6) | GPIO2_C2 | I/O | 1.8V | RK3588 | AD31 | GMAC0_RXD1/I2C6_SDA_M2/UART9_TX_M0/SPI1 _MOSI_M0/GPIO2_C2_d |
| 99(J6) | GND | PI | 0V | |||
| 100(J6) | GPIO2_C4 | I/O | 1.8V | RK3588 | AC30 | GMAC0_PPSCLK/TEST_CLKOUT_M1/HDMI_TX1_ CEC_M0/UART9_RX_M0/SPI1_CS1_M0/GPIO2_C4 _d |
Mechanical Dimensions
