K1 Pro Hardware Specifications
K1 Pro is a low-power, high-performance single-board computer based on the Rockchip RK3576 application processor. The motherboard integrates large-capacity high-speed memory, eMMC storage, Gigabit Ethernet, HDMI interface, USB 3.0 and 2.0 interfaces, supports multiple official functional modules, dual NVMe solid-state drives, and rich bus interface extensions. K1 Pro is suitable for various application fields such as smart home, industrial control, gateways, NAS, and edge devices.

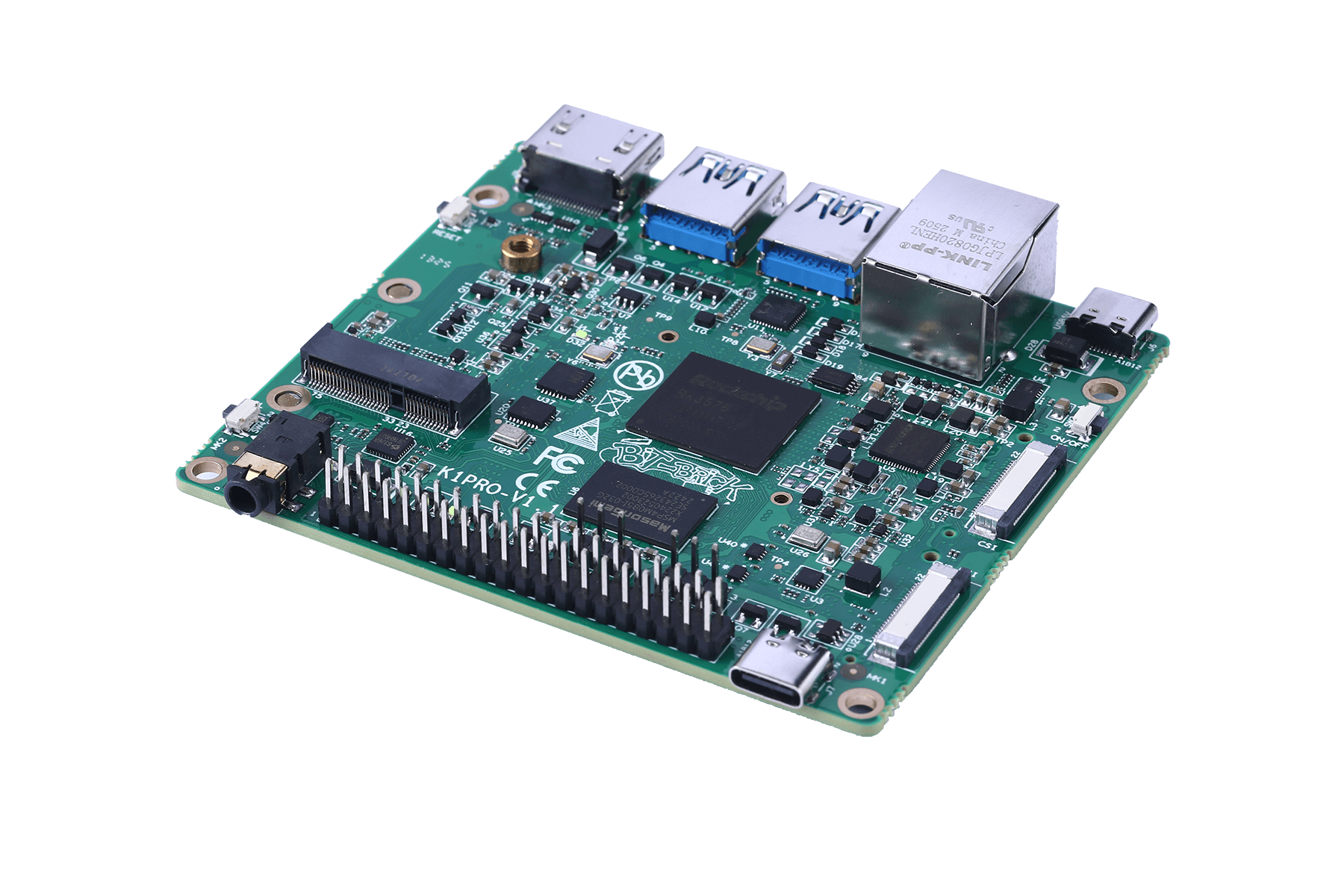

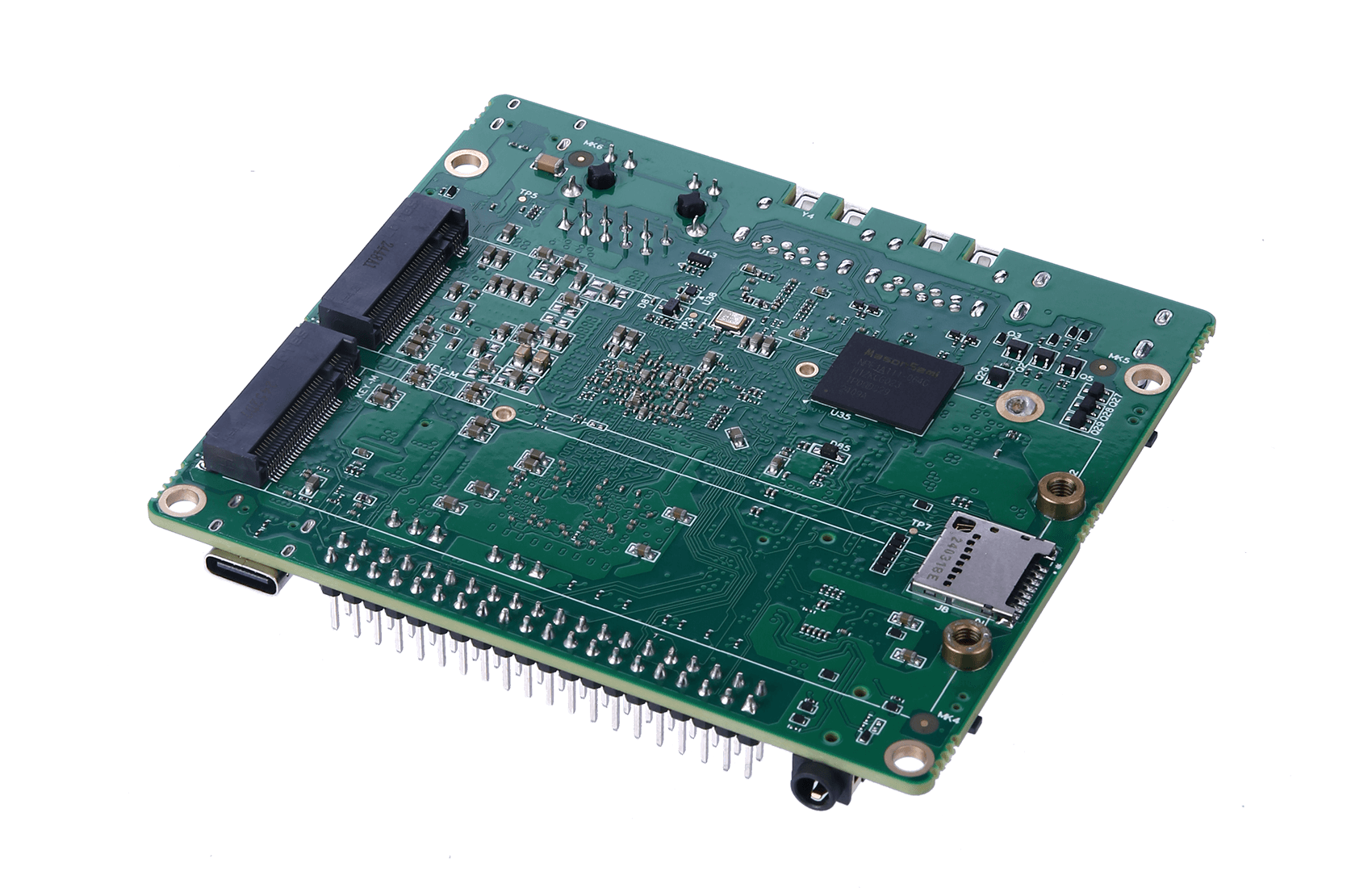

1. Overview
2. Hardware Specifications
| Item | Value |
|---|---|
| Processor | - Quad-core Cortex-A72 (up to 2.2GHz) and quad-core Cortex-A53 (up to 1.8GHz) with separate NEON coprocessor - Mali-G52 MC3 GPU (up to 1GHz), supports OpenGL ES 3.2, Vulkan 1.1, and OpenCL 2.0 - 6 TOPS@INT8 AI performance, supports INT4/INT8/INT16/FP16/BF16/TF32 hybrid operation |
| Details | - LPDDR4X SDRAM (2GB / 4GB / 8GB available) - eMMC flash (typical 64GB) - HDMI 2.1 supports up to 4K@120fps - 1x USB 3.0, 1x USB 2.0 HOST, 1x USB 2.0 OTG - 1x microSD card slot - 1x Gigabit Ethernet - 1x 4-lane MIPI CSI - 1x 4-lane MIPI DSI - 2x PCIe 2.0 interfaces for fast peripherals, supports NVMe SSD - Power LED and 3 programmable LEDs - 3.5mm headset interface, 2 onboard mics - 5V/2A DC power via USB-C - 40-pin connector, supports CAN/UART/SPI/I2C/PWM/I2S, etc. - WIFI/Bluetooth OPTIONAL (M.2 slot supports SDIO WIFI module) |

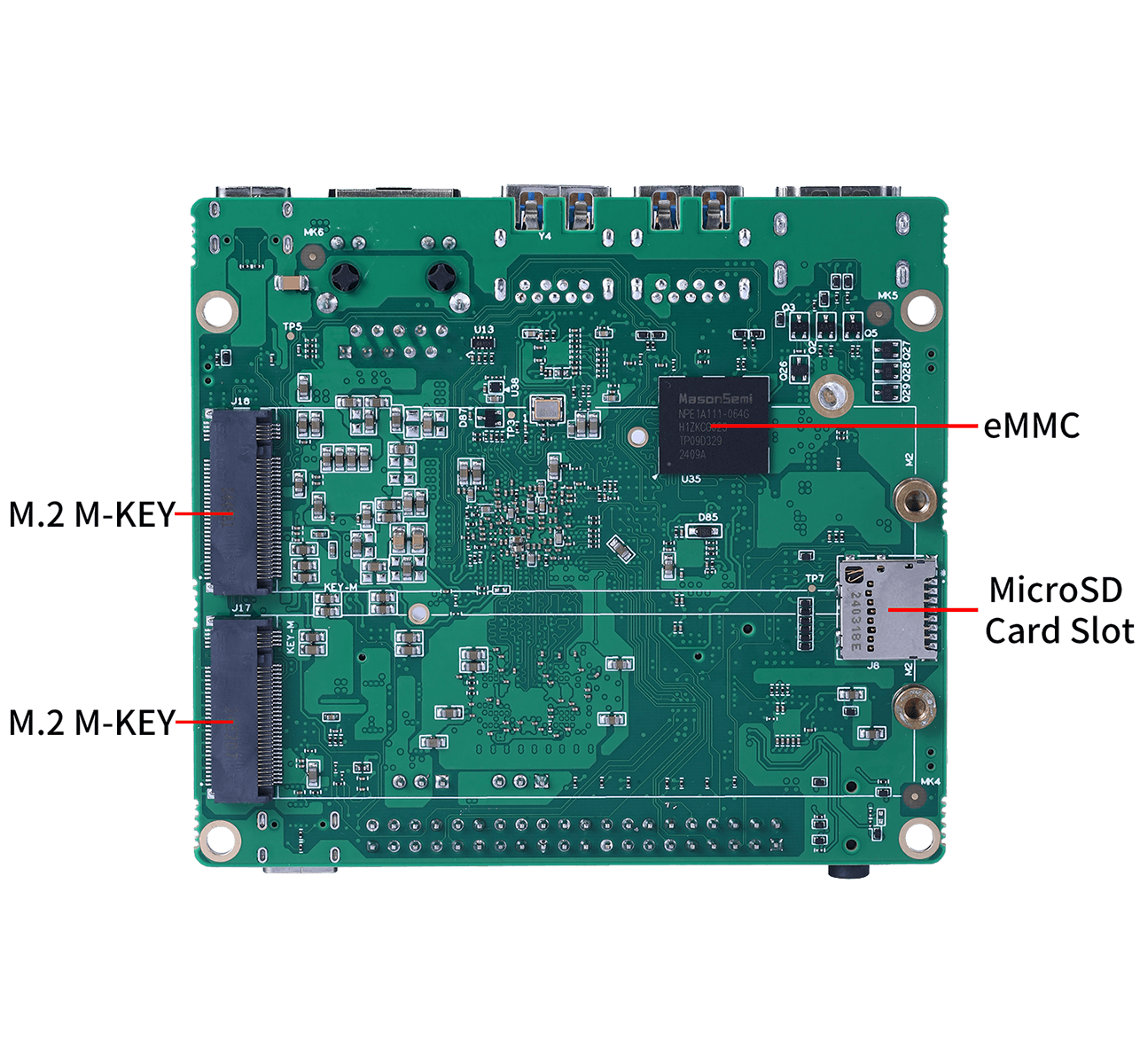

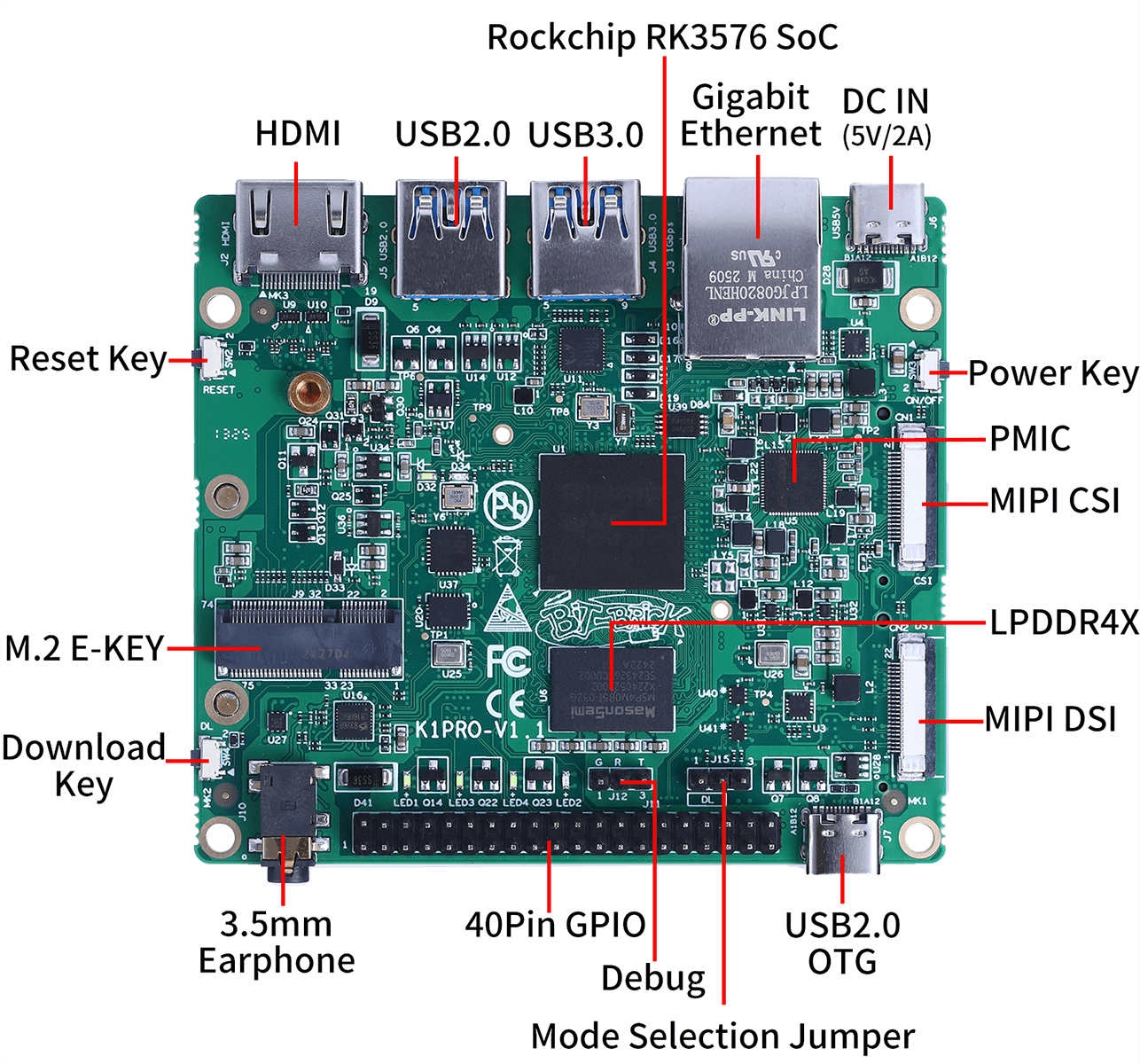

3. Functional Block Diagram

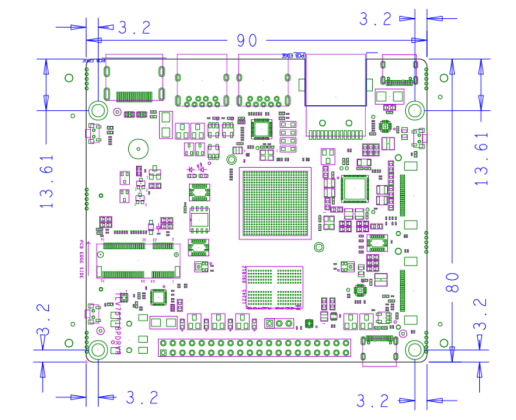

4. Dimensions
